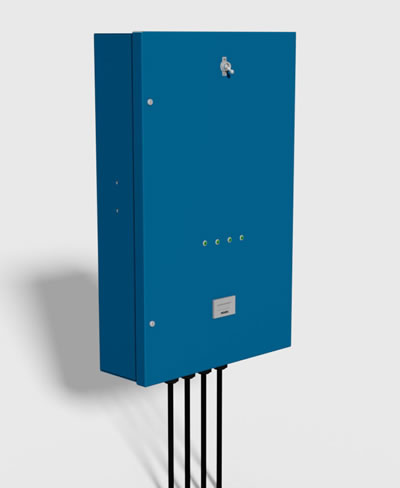

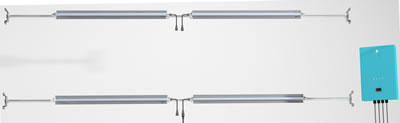

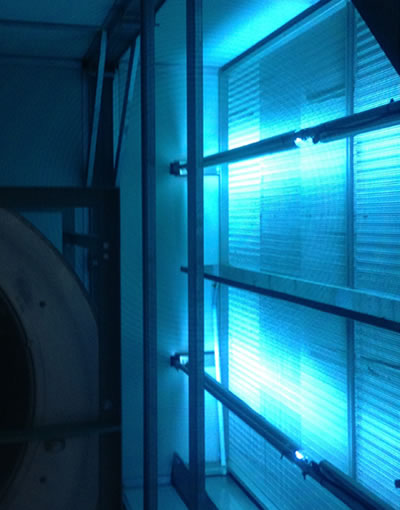

The CK Series is designed as a modular, highly flexible UVC kit for Air Handling Unit (AHU) installations. The kit is simple to install and can be configured to provide exactly what's needed for a wide variety of AHU installations. The CK Series is flexible enough to get everything you need and nothing you don't for almost any UVC application in an AHU. Standard configurations offer up to 16 lamps running from a single electronic enclosure. The CK Series can be supplied with standard, coated or double-walled cell lamps, based on requirements of the installation. The BMS option allows for lamp monitoring with relay output to a building's central monitoring system to ensure performance.

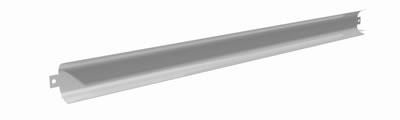

Highly polished for maximum UVC reflectance, CK series reflectors are designed to increase UVC energy
delivered to the coil and drain pan in upstream installations

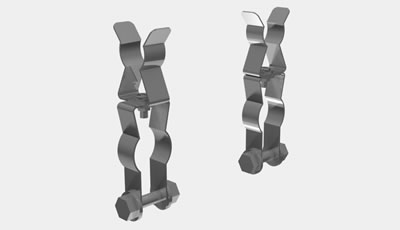

Snap-in stainless steel clips on one side allow tool-free lamp installation and replacement
while securely holding lamps. The other side of the clip is made to clamp around standard electrical conduit

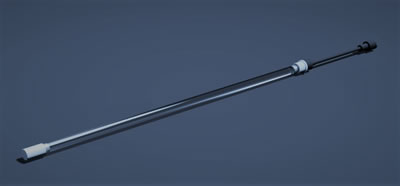

High Output, Low Mercury lamps are offered in 3 varieties for the CK series: standard, "shatterproof"
coated, and doublewalled. All utilize a watertight connection to the incoming lamp power cable and are rated for 2 years of effective lamp life. Standard sizes from 18" to 60"
Prolonged, direct exposure to UVC light can cause temporary skin redness and eye irritation. American Ultraviolet systems are designed with safety in mind and, when properly installed by a professional contractor, do not allow exposure to UV irradiation and allow for safe operation and maintenance. Visit our technical library.
