Superficies Blade

Handheld/Surface for UVC

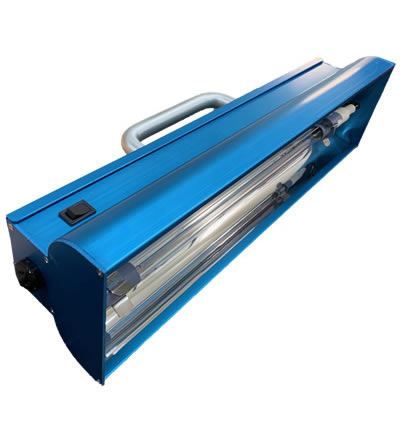

The Blade Handheld Unit

The UVC Blade from American Ultraviolet is a handheld, portable UVC disinfection device designed to deactivate bacteria, viruses and fungi in spaces where traditional hard-mounted UVC fixtures are inconvenient to be mounted; and where portable devices have limited access. Common environments include laboratories and food manufacturing, including food storage and packaging .

In healthcare environments the UVC Blade is ideal for the disinfection of:

  • Bathroom handrails, toilet surfaces, sinks, and other surfaces
  • Cell phones, chairs, door knobs, bed rails, tray tables, etc.

The UVC Blade is fully portable and plugs into any standard 120V outlet. It comes equipped with a shatterproof UVC high output lamp, an oversized handle designed to maximize grip comfort, an on /off switch, a power cord, and UVC safety glasses.

Benefits

  • Quickly disinfects common bacteria, viruses and fungi on hard to reach surfaces
  • Lightweight handheld device with shatterproof lamp
  • Easy to use
  • Lamp rated for 12,000 hours
  • Comfortable handle minimizes grip discomfort

Specifications

  • Polished aluminum reflector maximizes UVC intensity
  • Quick and easy lamp-change out requires no extra tools
  • On/Off safety switch
  • Voltage: 120-240V; 50/60HZ
  • Provides ≥735µW-s/cm2 of UVC intensity @ 6"
  • Dimensions: 18"L x 5"W x 6.25"H
  • 6 foot 3 -prong power cord standard on 120V version
  • Uses one SBL350T shatterproof germicidal UVC lamp
  • Lightweight aluminum housing is sturdy, yet weighs less than 5lbs.

Healthcare UV Surface Blade

Watch the handheld UVC Blade (below) quickly disinfect a keyboard, ear pods, phone, and computer mouse, in real time. By also using UVC Dosimeters – available for purchase from American Ultraviolet - the operator can be assured they have delivered a proper dosage of UVC energy to the target surface(s). The portable Blade, which is delivered with a pair of UVC blocking goggles, operates at 120 – 240V; 50/60HZ. Please refer to the Blade Manual for proper operating instructions.



Prolonged, direct exposure to UVC light can cause temporary skin redness and eye irritation, but does not cause skin cancer or cataracts. American Ultraviolet systems are designed with safety in mind and, when properly installed by a professional contractor, do not allow exposure to UV irradiation and allow for safe operation and maintenance.
